Model AF
(Slot diffuser width ranges from 10 to 80 mm, in 5 mm increments*)
Description:
- The presence of a deflector ensures absolute visual aesthetics
- Serviceability and cleaning are made possible by a removable deflector
- The design features provide uniform distribution of the supply air stream
- A unique multi-chamber profile guarantees perfect geometry
- Made from AD-31 aircraft-grade aluminum
- Polymer powder coating protects against corrosion and allows installation in high-humidity environments
- The design is engineered for easy and reliable installation
Air Distribution Example
- Thanks to its well-designed construction, the slowed airflow is evenly distributed along the entire length of the diffuser and comes into contact with the surrounding environment from all four sides. The extended contact with the ambient air, combined with the low flow velocity, enhances the efficiency of mixing cold and warm air, creating a comfortable indoor environment.
- Our diffusers provide an airflow reach of up to 2 meters.
- As the air exits the diffuser, the stream exhibits laminar characteristics, which positively impacts system load and noise levels.
The entire FLOW line of slot diffusers reduces noise from air distribution systems
* For a stretch ceiling, the gap width should be between 30 mm and 70 mm, with an interval of 5 mm.
Technical passport
BIM model
Download BIM model
BIM**Corner Element Options for Model AF**
CC
CW
CE
CS
Scheme of installation in the ceiling
G1
G2
PV
G1
G2
PV
Integration of Ventilation and Lighting
Our lighting partners are Maytoni and ST Luce
Lighting Integration Options for Model AF
Installation of any spotlights onto the deflector is possible. The diffuser slot width should be selected to match the width of the lighting fixture. Airflow is blocked only at the points where the fixtures are mounted.

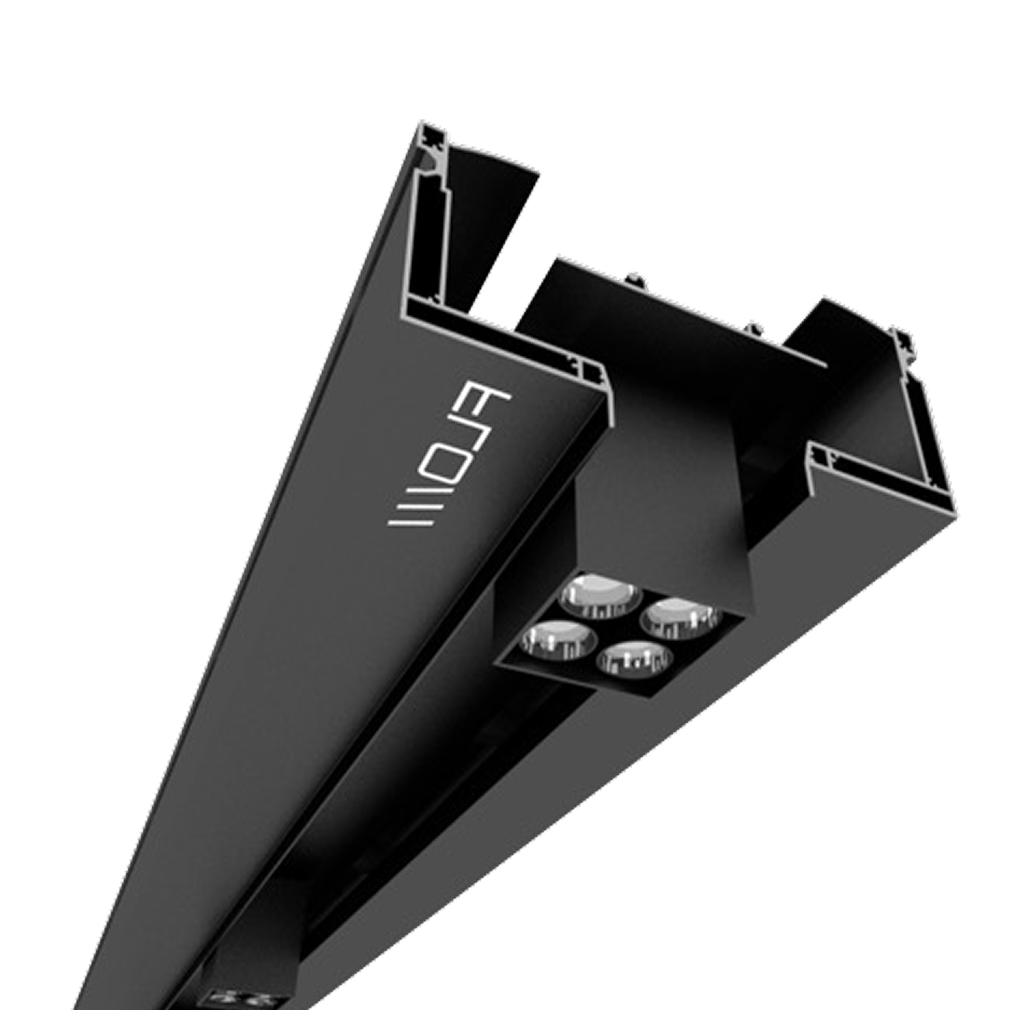

Illuminator 1

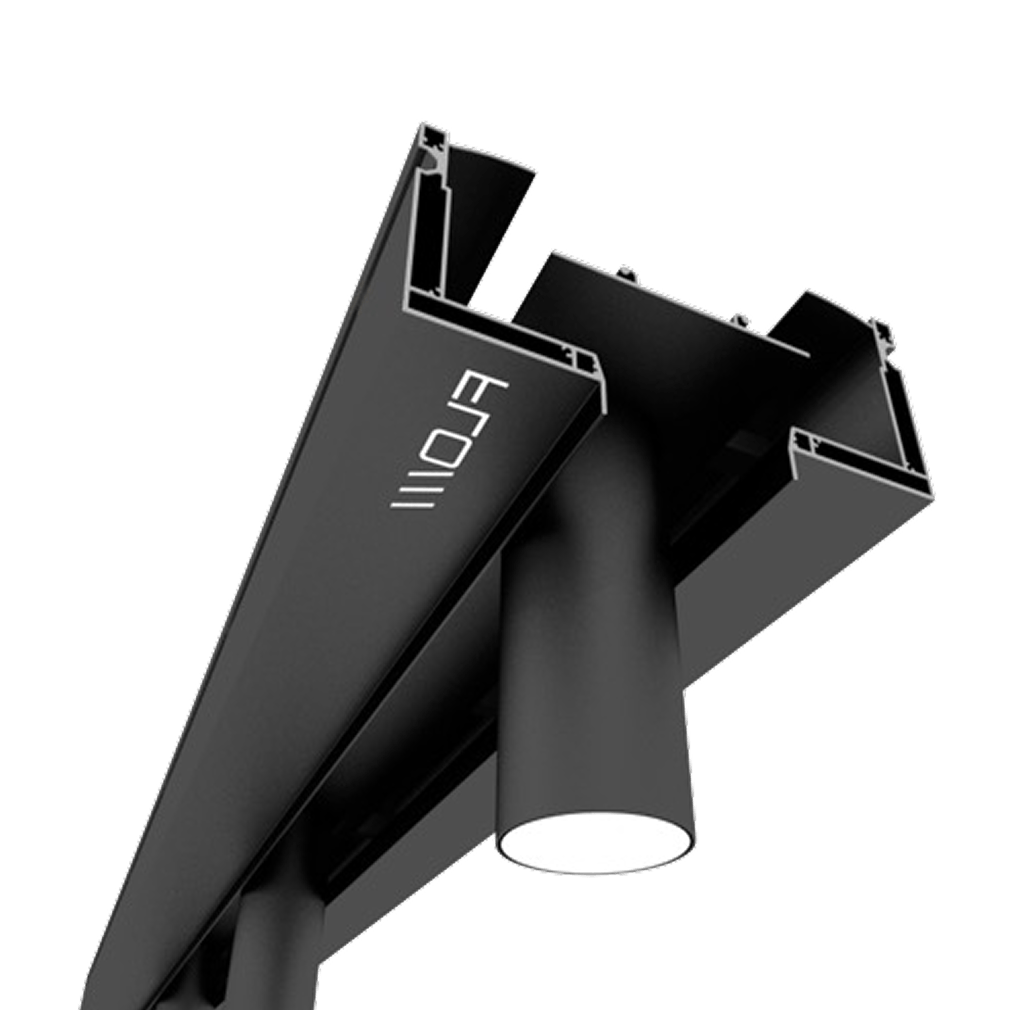

Illuminator 2

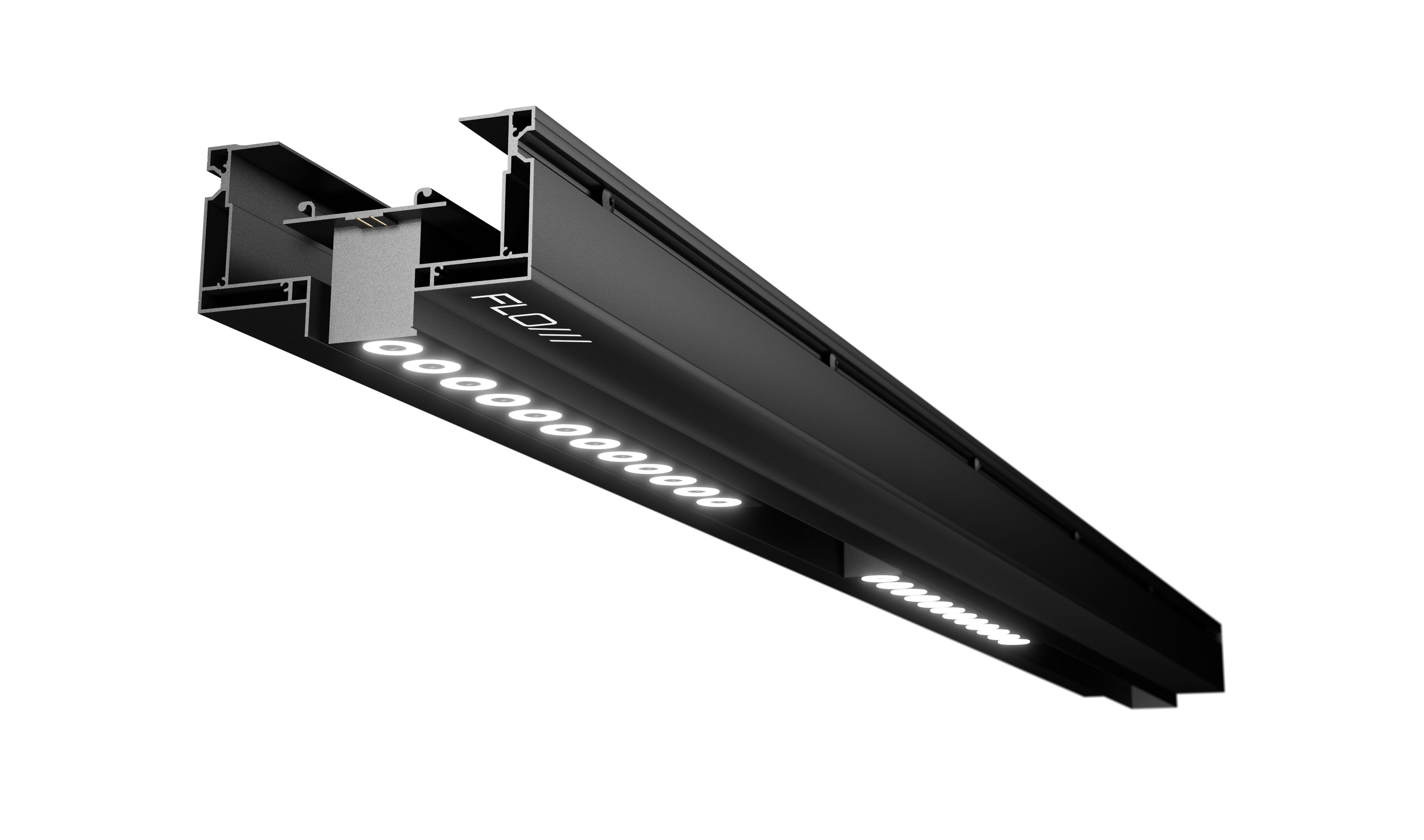

Illuminator 3
