Model X
(Diffuser slot width 10-100 mm, with 5 mm intervals*)
Description:
- Optimized design and cost
- The gap width is up to 100mm for proper air distribution in the room when a large volume of air is supplied
- The hexagonal mesh reduces the flow rate and makes it laminar
- The unique profile made of aviation aluminum AD-31 guarantees perfect geometry
- The polymer powder paint protects against corrosion and allows the diffusers to be installed in rooms with high humidity
- The design is engineered for easy and reliable installation
Example of air distribution
- The hexagonal grid breaks the air flow into many individual jets
- Thanks to the well-thought-out design, the slowed-down air flows are deturbolized and mix faster with the room air, which minimizes the jet length and increases the cooling efficiency
The entire FLOW line of slot diffusers reduces noise from air distribution systems
* For a stretch ceiling, the gap width should be between 30mm and 70mm, with an interval of 5mm
Technical passport
BIM model
Download BIM model

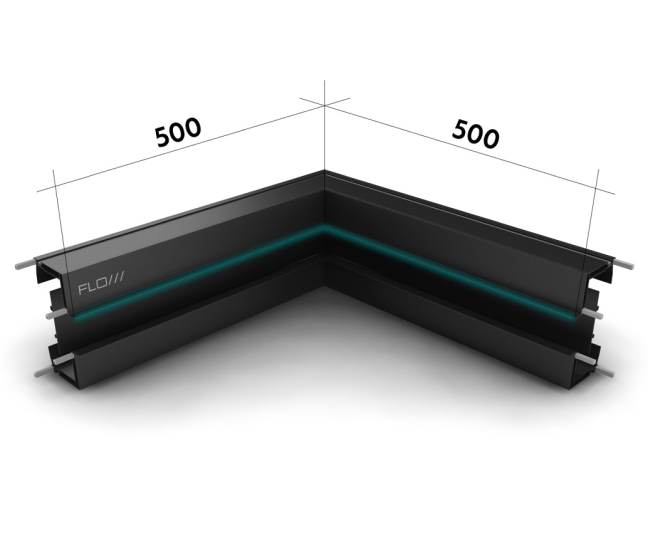

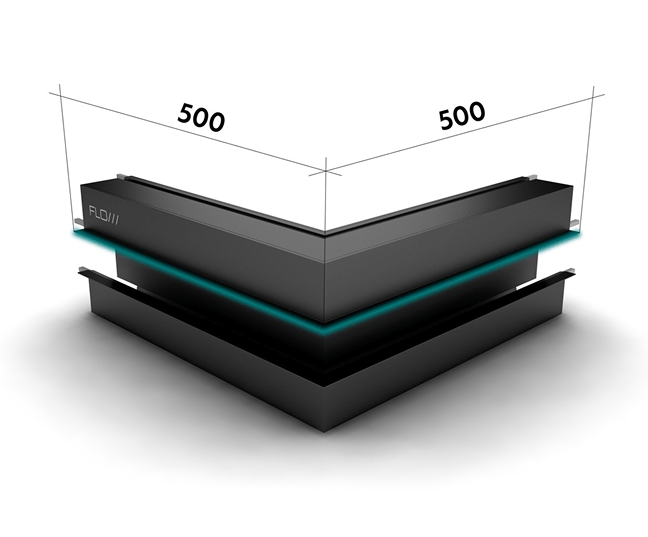

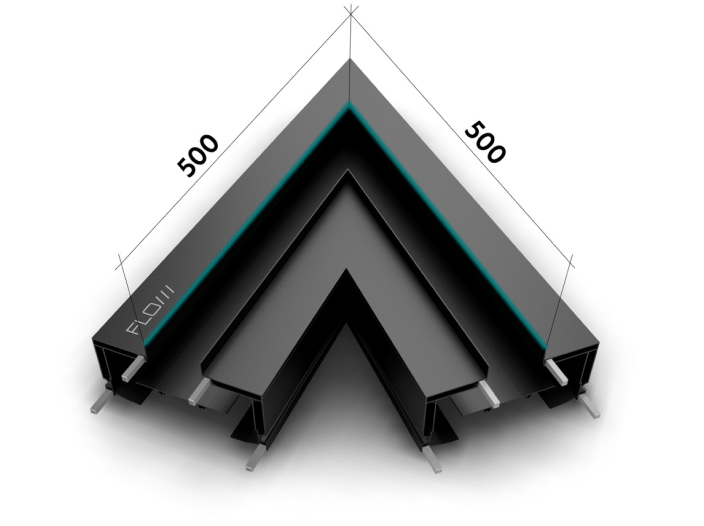

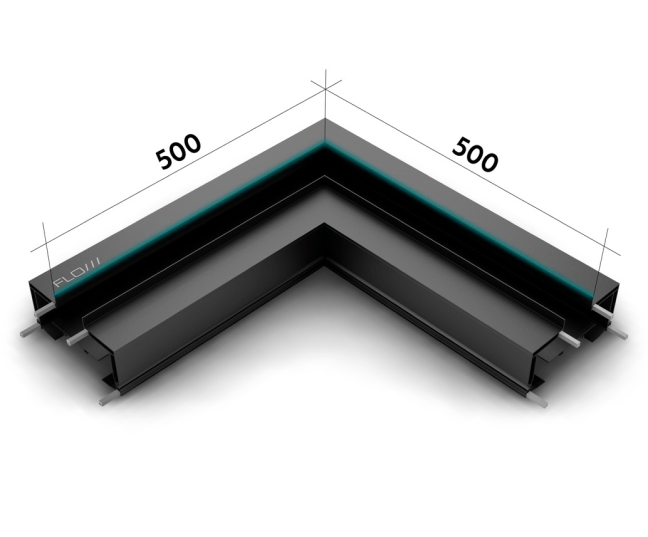

BIMVariants of the angular elements of the model X
CC
CW
CE
CS

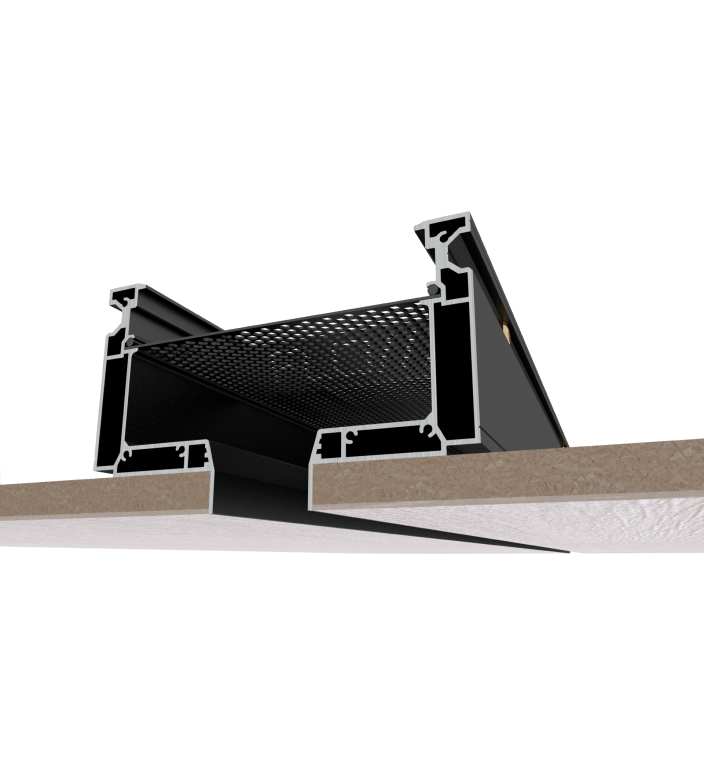

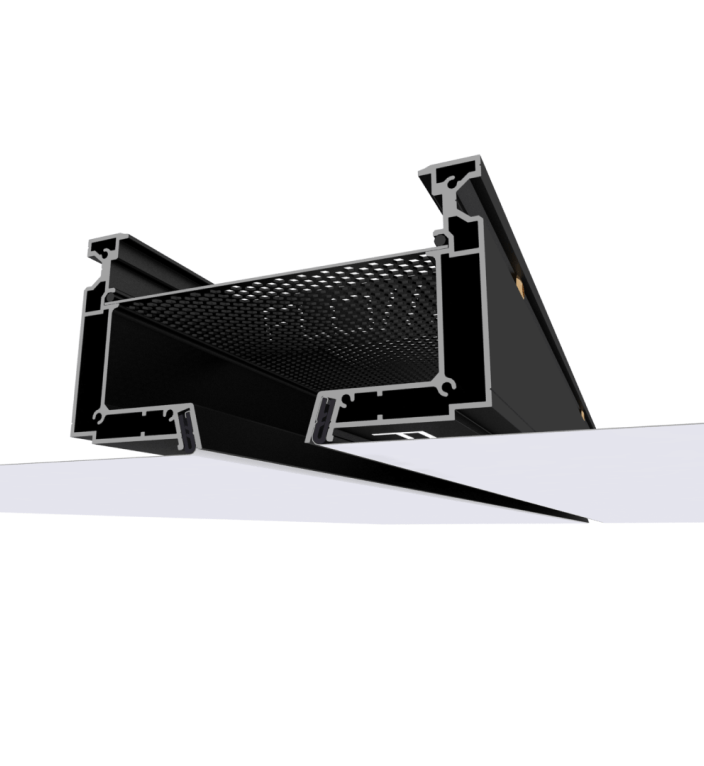

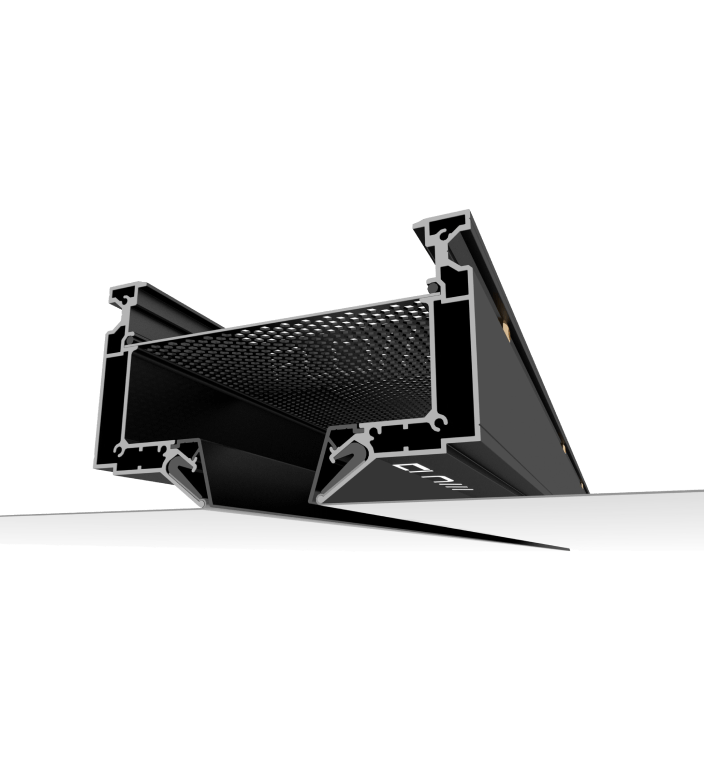

Scheme of installation in the ceiling
G1
G2
PV
PT
G1
G2
PV
PT
